Azimuth
Definition: The angle between true north and the projection of a surface normal to the horizontal plane, measured clockwise from the north. As applied to a Photovoltaic array, 180 degrees azimuth means the array faces south.
Related Links
Azimuth – WikipediaUnderstanding Azimuth and Elevation | PhotoPills
Definition of “azimuth”
What are the “azimuth and elevation” of a satellite? | Memorial Spaceflights
Azimuth | Definition of Azimuth by Merriam-Webster
Azimuth | Define Azimuth at Dictionary.com
Altitude and Azimuth
Related Videos

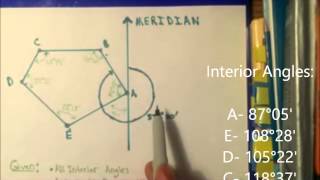

Bearings and azimuths
How to Calculate Azimuth
Altitude and Azimuth

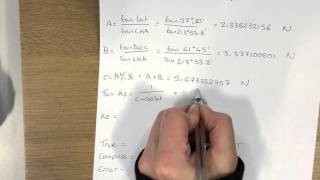

Determine azimuth
Azimuth
Azimuth-Elevation Coordinate System

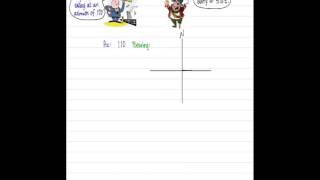

INTRODUCTION TO AZIMUTHS
Azimuth using oscilloscope on Revox A77
-
Bearings and azimuths
-
How to Calculate Azimuth
-
Altitude and Azimuth
-
Determine azimuth
-
Azimuth
-
Azimuth-Elevation Coordinate System
-
INTRODUCTION TO AZIMUTHS
-
Azimuth using oscilloscope on Revox A77
What azimuth means in electrical work
Azimuth is the horizontal angle measured clockwise from true north to a specific point or direction. In electrical work, you use it most often when positioning solar panels, antenna systems, and satellite dishes. Getting the angle right affects how much power a solar array produces every single day.
The word comes from Arabic navigation and has been used in technical fields for centuries. Today it shows up in solar site assessments, telecommunications installations, and any electrical job that involves aiming equipment at a precise direction in the sky or on a map.
How azimuth applies to solar panel installation
When you install a solar panel system, azimuth tells you which direction the panels face. In the United States, the ideal azimuth for a fixed solar array is 180 degrees, which means the panels face true south. True south is different from magnetic south, so you must account for magnetic declination (the difference between magnetic north and true north) at your specific job site.
Why the angle matters for energy output
A panel facing true south captures the most sunlight over the course of a day. Panels that face east or west lose a meaningful share of potential output. Even a 15-degree error in azimuth can reduce a system’s annual energy production. As an installer, you are responsible for measuring and setting this angle correctly before the system is commissioned.
Tools electricians use to measure azimuth
You can measure azimuth with a magnetic compass, a solar pathfinder, or a digital site survey app. Magnetic compasses read magnetic north, so you must apply a declination correction for your location. Apps like Sun Surveyor or Solmetric SunEye calculate the correction automatically once you enter your GPS coordinates. Many commercial solar jobs also use a handheld inclinometer alongside an azimuth tool to capture both the horizontal and vertical angles at the same time.
Azimuth in antenna and communications wiring
Licensed electricians who work on telecommunications systems, rooftop antennas, or satellite equipment also deal with azimuth daily. A satellite dish must point at a specific azimuth and elevation angle to lock onto its target satellite. If either angle is off, the signal drops or disappears completely.
Reading an azimuth from a signal lookup table
Satellite providers publish azimuth and elevation tables for every zip code in the country. You look up your installation address, read the required azimuth in degrees, and then use a compass or a digital pointing app to aim the dish. Most technicians mark the target angle on the mount bracket before lifting the dish into position, so the final adjustment is small and precise.
How azimuth appears in low-voltage and data work
If you earn a low-voltage license or an alarm systems credential, you will set up wireless access points and directional antennas that require azimuth alignment. A directional antenna aimed 20 degrees off target can lose half its effective range. Understanding azimuth is a practical skill, not just a textbook concept.
Azimuth and the National Electrical Code
The National Electrical Code (NEC) does not define azimuth directly, but it does govern the installation of solar photovoltaic (PV) systems under Article 690. That article requires that PV systems be installed according to the manufacturer’s instructions, which always include azimuth specifications. Code inspectors can flag an installation if the documentation does not match the physical setup. Keeping accurate azimuth records protects you during inspection.
Learning azimuth as part of electrical training
Azimuth is taught in several contexts during electrical training. You will likely encounter it in your solar PV coursework, your applied math modules, and any telecommunications elective you take. Understanding angles, compass bearings, and site geometry connects directly to the math skills covered in your first-year electrician apprenticeship.
Apprenticeship programs and solar coursework
Most Joint Apprenticeship Training Committee (JATC) programs, which are the apprenticeship programs run by the International Brotherhood of Electrical Workers (IBEW) union, now include a solar installation module. That module covers azimuth, tilt angle, shading analysis, and system sizing. If your local JATC does not yet offer this content, you can find stand-alone solar PV courses through community colleges, trade schools, and online providers.
Certifications that cover azimuth knowledge
The North American Board of Certified Energy Practitioners (NABCEP) offers the PV Installation Professional certification. This is the most widely recognized solar credential in the country. The exam tests your ability to perform site assessments that include azimuth measurement and shading evaluation. Some employers require NABCEP certification for lead installer roles on commercial solar projects.
The Electronics Technicians Association (ETA) also covers azimuth in its satellite and communications technician certification exams. If you plan to work in telecommunications wiring or broadcast antenna systems, that path is worth considering alongside your electrical license.
Azimuth calculations you should know
You do not need advanced trigonometry to work with azimuth on most job sites. The basic calculations electricians use are straightforward.
Converting compass bearings to azimuth
A compass bearing uses letters and degrees, like N 45 E. An azimuth uses a single number from 0 to 360. To convert N 45 E to an azimuth, you read it as 45 degrees. S 45 W converts to 225 degrees. The formula is simple: for bearings in the southeast quadrant, add the bearing degrees to 90. For southwest, add to 180. For northwest, subtract from 360. Most solar software does this conversion for you, but knowing the manual method helps when your phone is dead or the app is unavailable.
Applying magnetic declination
Magnetic declination varies by location. In the eastern United States it is generally positive (magnetic north is west of true north). In the western United States it is generally negative. The National Oceanic and Atmospheric Administration (NOAA) publishes a free online declination calculator. You enter your address and get the current declination value in degrees. You then add or subtract that value from your compass reading to get your true azimuth.
Common mistakes when working with azimuth
Forgetting to apply magnetic declination is the most common error. A compass reading and a true azimuth are not the same number in most of the country. In some western states, the difference can exceed 15 degrees, which is enough to cause a measurable loss in solar output or a complete satellite signal failure.
A second mistake is confusing azimuth with elevation. Azimuth is the horizontal direction. Elevation is the vertical angle above the horizon. Both matter for satellite dishes and solar arrays. They are measured and adjusted separately.
A third mistake is using magnetic south instead of true south as the target for solar panel azimuth. Always verify which reference the equipment manufacturer uses in their specifications before you set the mount.
How azimuth knowledge helps your career
Electricians who understand azimuth can take on solar installation and telecommunications work that other tradespeople cannot. Solar is one of the fastest-growing segments of electrical construction in the country right now. If you can perform accurate site assessments, including azimuth measurement and shading analysis, you become more valuable to solar contractors and electrical firms that hold solar contracts.
Some states, including California, require solar installers to hold an active electrical contractor license or work under one. In those states, combining your electrician license with NABCEP certification gives you a direct path into higher-paying solar project work. Other states have fewer formal requirements, but employers still favor applicants who can document their solar training.
Understanding azimuth also helps if you move into project management or inspection work. Plan reviewers and inspectors check azimuth data in permit applications for solar systems. If you can read and verify those figures, you qualify for roles that many electricians cannot fill.
Where to go from here
If you are considering a career in electrical work and want to include solar or telecommunications in your skill set, the next step is finding a training program that covers applied site assessment, including azimuth and angle measurement. Accredited electrician programs, apprenticeship programs, and solar-specific courses all teach these skills at different levels of depth.
Browse the training programs listed on this site to find options that match your location and schedule. Look for programs that include hands-on site assessment labs, since classroom azimuth exercises alone do not prepare you for real job sites the way field practice does.
